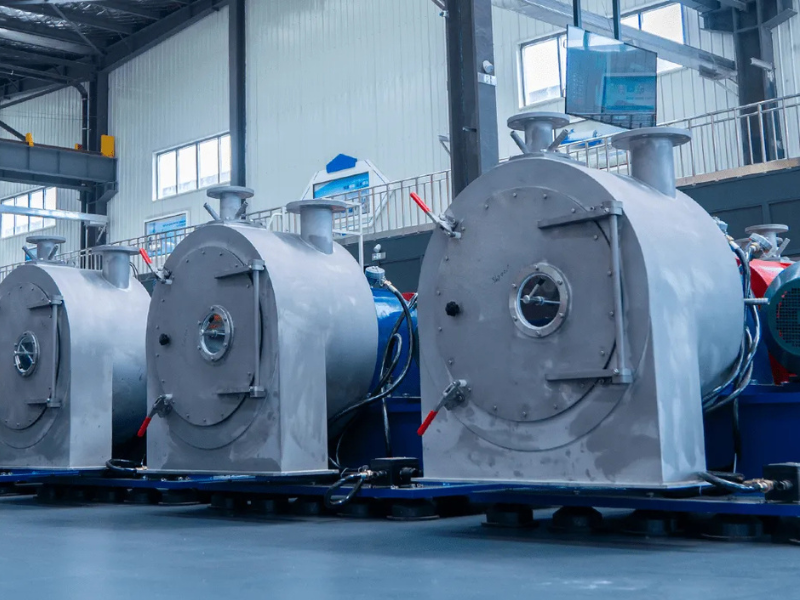

Screen Worm Centrifuge: Design Specifications

The screen worm centrifuge is a highly developed piece of engineering designed in the realm of solid-liquid separation technologies. Using centrifugal force and a carefully constructed mechanical design, the screen worm centrifuge operates efficiently and continuously across numerous industrial applications. Equipment of such design is able to separate materials that are difficult to separate using other separators, especially those with larger particles and unique flow characteristics. One should appreciate and understand the design specifications of the machine in order to optimize the machine's performance in numerous activities in all sectors. From the chemical processing industry to food production, the screen worm centrifuge has proved itself to be a highly valuable machine in all operations that need efficient and reliable separation of large volumes of materials.

Main Function Of Screen Worm Centrifuges

Screen worm centrifuges is built on a multi-faceted yet simple concept. The suspension coming in has to go through extreme centrifugal forces as a result of the bowl's rapid spin. The heavier solid particles move in to the outer wall and are trapped by the screen while the lighter liquid moves through the screen and exits the centrifuge through the wall. This causes a solid mass of separated material to grow on the screen. This mass is called a 'cake' by the engineering team.

The special spiral interior pieces that operate continuously are the ones that make the operation successful. There is a worm screw that revolves at a slightly different rate from the main bowl, which is referred to as a differential speed. This causes the spiral to slowly and constantly promote the solid filter cake to the discharge end of the centrifuge. At the same time, the clarified liquid takes a different line of discharge. This brilliant method is the only fully automated and continuous process of the separation of solid and liquid phases, making it ideal for industrial processes that cannot stop. The whole system works without any manual effort, and the consistent quality of the output during the entire process is guaranteed.

Key engineering particulars and their relevance

When assessing screen worm centrifuges, a handful of design particulars require special consideration, as they fundamentally affect performance and appropriateness for particular uses. The bowl diameter ranges from about 200mm for smaller models to 1000mm for larger-scale industrial units. This dimension primarily determines the machine processing ability, as larger diameters permit greater throughputs, though they may demand more higher power and consumption of space. The bowl rotation speed, commonly stated in revolutions per minute (rpm), operates in conjunction with diameter to produce the centrifugal force needed for effective separation. Depending on the model and the requirements of the application, common operational speeds fall in the 900 to 4000 rpm range .

There is also the separation factor, defined as the ratio of centrifugal to gravitational acceleration, which is a very critical characteristic. The greater this ratio, the more potent the separating force, with some models offering separation factors of up to 2000 G-force. This characteristic directly determines the effectiveness of the machine for processing fine materials, or materials with close solid and liquid densities. Processing ability, quantified in m³/hr, also varies from models of modest 0.5 m³/h up to heavy-duty units of 30 m³/h or higher. This characteristic must be very closely matched with the production requirements to obtain the most efficient operation of the machine without overworking the system.

Before going into detail, it is important to establish the northernmost and southernmost extremes of the model range, for the purposes of this text which will restrict itself to acomadic centrifuges. The lowest range is approximately 3kW for small comp continued above, while the highest is 75kW for large comp. Therefore there is a 10x divide. When looking at mechanical, structural, and operational power, there needs to be power matching, which can enable in the proper operational range to assist energy outcome efficiency. The range of sqft operational efficiency of the larger machines goes at 3200*2200*2300 mm. When it comes to the installation planning to own facility, soft points as well as the weight are key. For example, obtaining a standard model in weighing 550 kgs to bringing in and installing 6000 kgs needs different approaches. This leads to installation feasibility which plays a critical part in planning for large partitions. When looking at machines with restrictions in space. The type of host facility plays an important role.

When using these centrifuges, it is key to keep in mind the non-compromiso of the construction when using the above stated materials. The biggest contact with the processed components will be the outer casing, and thus for this part the most common selection is stainless steels of the 316L and 304 type. Corrosion, wear, and abrasion resistance are the key factors of these Stainless steels. For even more abrasive parts, like the spiral conveyor, these models come with specialized wear protection in the form of elastic shock-absorbing rubber with hard alloy pieces embedded in it to extend service life even more

The drive system stands as the next important feature to consider. Numerous modern screen worm centrifuge uses dual motors with independent frequency control for both the bowl and the conveyor. This configuration gives operators the ability to control and change the speed of the bowl and conveyor separately, allowing for an adjustment of the differential speed. This differential speed adjustment is what determines the dryness of the solids, the clarity of the liquid, as well as the changeability of the entire process. The differential itself can be made with different types of gear systems, hydraulic differenials, or cycloidal pinwheel gears. Each with their own pros for different applications, operating conditions, and required torque.

The designs of the Discharge units change with each different application. Most screen worm centrifuges have fully automated continuous discharge systems that allow continuous operation at all times. The discharges unique setups of discharge ports, chutes, weir plates, and discharge systems can be tailored to meet the specific material needs and provide easy integration with secondary downstream systems. More sophisticated models feature a unique combination of protection systems such as vibration control, bearings, and motor control to prevent overheating and to control over RPM as well as the torque on the conveyor. These protections greatly reduce the risk of damage, and allow for automatic protection of the system to be enabled by system suspension when operating conditions are out of the permitted limits.

Custom Configurations for Specific Needs

Screen worm centrifuges come in different designs to meet different operational needs. The standard type is characterized by single-motor variable frequency driving with continuous speed regulation via cycloidal pinwheel or planetary differentials the system uses to hold speed differentials between the spiral and the bowl. In most general cases, such configurations are appropriate when the characteristics of the materials processed are fairly homogeneous, and the processing conditions are not volatile.

The type of mechanical gearbox is the next step in such configuration hierarchies, customized with hydraulic differentials of small volume but large pushing moments. Such configurations are especially suitable for the separation of materials with large oversize plugs, or with an initially high solids content, more than what standard configurations would separate. Such units typically have a differential feedback control system with overload alarm functionalities at the leading-out terminal, and maximum pressure alarm with an automatic shutdown function. Online stepless differential control of speed within the range of 1-30r/min without equipment shutdown is a feature highly valuable for process automation in cases when frequent adjustments in control are required as process conditions are subject to changes.

For difficult materials where flow characteristics prove problematic, screw feeding type serves an advantage. This configuration has a specialized spiral feeding port which allows for steady and consistent feeding with little to no vibration. This design works exceptionally well for the processing of high concentration and poorly fluidized crystal materials, which in other models, tends to create blockages or imbalanced processing. Because of the advanced feeding system, these centrifuges are able to deliver consistent results with varying amounts of viscosity or solid concentration throughout the batch being processed.

Industry Applications and Material Compatibility

The breadth of applications of screen worm centrifuges across various industries exemplifies their flexibility. In the chemical industry, they are used for the processing of various crystals, fibers, and plastic particles where the integrity of the particles is not essential. In the mining industry, these machines are used for the classification of mineral slurries, tailings dewatering, and the treatment of dewatering of various ores. Their special design with additional wear protection makes it very appropriate for the more abrasive materials processed in the mineral industry.

Another important field in which these machines can be used is food processing and includes the use of screen worm centrifuges for starch separation, protein dehydration, and fruit pulp processing. In these sensitive food processing areas, the easy-to-clean surfaces and corrosion resistant materials are essential for meeting hygienic standards. In antibiotics production, the pharmaceutical industry uses these centrifuges for separating a fermentation broth and other processes that need reliable solid-liquid separation and control.

Environmentally related uses of these centrifuges in industrial wastewater treatment and municipal sewage treatment include the effective thickening and dewatering of sludge that greatly diminishes the amount of sludge to be disposed of or further processed. Their ability to work continuously is a requirement for these high volume applications where downtime is not allowed. Their ability to work with different types of sludge and with varying solid concentrations without the need for major changes is one of the reasons for their popularity. In fact, many of these models can process feeds that contain a much higher solid content than is possible with other technologies.

Considerations and Performance Optimization

To get the most from a screen worm centrifuge, several operational characteristics need to be evaluated. One is controlling feed rate. If the feed is coming in at too high of a rate, the system is going to get overrun and blocked. If the feed rate is too low, the system is going to lose efficiencies and wear more. Processing outcomes and influencing factors like feed concentration and particle size distribution are very characteristic dependent. The model of centrifuge is going to dictate how some of these characteristics interact. A lot of the time, operators are trying to optimize a tradeoff between the solid discharge querin effluent liquid and the remaining moisture content.

Control of modern screen worm centrifuge is going to allow the user to fine tune the system how they need. For example, variable frequency drives allow for more or less precise adjustments in bowl and conveyor speeds, and that can be tailored to the demands of the operation. The dryness of the final cake is in large part dependent on the residence time through the separating zone. That is dictated by the differential speed between the bowl and spiral conveyor. It is a common case that lower differential speeds are going to yield drier solids, but at a tradeoff of lower capacity. Quicker speeds are going to yield a more deficient moisture content, but also at a tradeoff of going to lower solid mass. Finding the right speed for the demand of an application can take some fine tuning, and that is usually done during the commissioning phase.

When choosing and using these devices, never forget about maintenance considerations. Models with complete monitoring subsystems that track parameters such as RPM, differential speeds, vibration, bearing temperatures, and spiral conveyor torque are invaluable in avoiding expensive and unplanned downtime. Routine maintenance inspections of wear components, especially conveyor spirals and screen surfaces, enable consistent functionality, and replacements can be scheduled to avoid failure. To maximize maintenance effectiveness and ensure that machine usage is optimized, most machine builders provide installation observation, operational training, and maintenance assistance.

Screen worm centrifuge separation technologies offer unique strengths and weaknesses from other options. Compared to filter presses, they permit continuous operation as opposed to batch processing, offer greater automation, and occupy less space. Conversely, for some materials, filter presses can be more cost-effective for lower capacity applications, and they can produce drier cakes. Additionally, screen worm centrifuges offer continuous operation, avoid the downtime associated with filter media maintenance that’s common in filter press operations and, as such, enhance overall processing capacity.

Compared to decanter centrifuges with no screens, those with screens and worms achieve more complete drainage due to the combined effects of centrifugal force and the screen. This can yield drier discharged solids in more applications, especially those involving some of the more complex materials such as crystalline or fibrous. In contrast, decanter centrifuges can screen out more of the fine materials and be a better tool for some applications, especially for materials that might blind the screen surfaces. Choice of technology is quite often down to the specifics of the material and the requirements of the process.

Vibratory screens and other gravity based separators in the market tend to have cheaper initial and running costs, but from a pure separation and throughput perspective, they can't compete with centrifugal systems. In fine separation or high volume processing operations, the screen worm centrifuges are often the most cost effective solution, even with a more expensive initial cost. Their continuous operation is associated with reduced labour requirements when compared to a manual batch system, and both the initial and running costs of the centrifuge tend to be cheaper when considering the volume of material processed over the lifespan of the system.

Future Trends and Technological Developments

Technological enhancements focused on performance, efficiency, and usability continue to shape the evolution of the screen worm centrifuge. Advances in materials sciences create more corrosion resistant and durable alloys that improve critical components service life in demanding applications. Untreated surfaces and specialized coatings designed to withstand abrasives are improvements that have the potential to reduce maintenance and costs. These improvements translate to components age more gracefully and performance remains stable over time.

The sophistication of control systems is on the rise, and programmable logic controllers that allow for full process automation, including starting, stopping, and real time process control for optimization, are becoming more common. Newer systems are able to autonomously sustain optimal performance without manual tuning by controlling and adjusting variables in the process. The ability to sustain optimal performance without manual tuning has increased efficiency and has decreased costs. The ability to control these systems remotely, including predictive maintenance, has vast potential in the industrial arena.

Another area of development is energy efficiency. To lessen operational costs and impact on the environment, manufacturers are working on enhanced fluid dynamics, more efficient motor designs, and advanced power management systems. Newer models incorporate energy recovery systems that capture and reuse power that would otherwise be lost as heat. The focus on sustainability across all industries will make these efficiency gains more and more influential on the equipment selection. Improved separation enhancement and advanced design of screens and flow patterns for various processes are the focus of research aimed at pushing the potential of these machines even higher.

In the final analysis, the screen worm centrifuge is a refined separation technology whose parameters are the outcome of high level design across multiple uses. The design parameters are fundamental dimensional and power design, operational control, component material selection and system integration. These design policies will determine the most suitable technology for a given operational requirement. Further, these machines, as their technology and design sophistication and processing model integration advances, will remain as high use industrial instruments.
